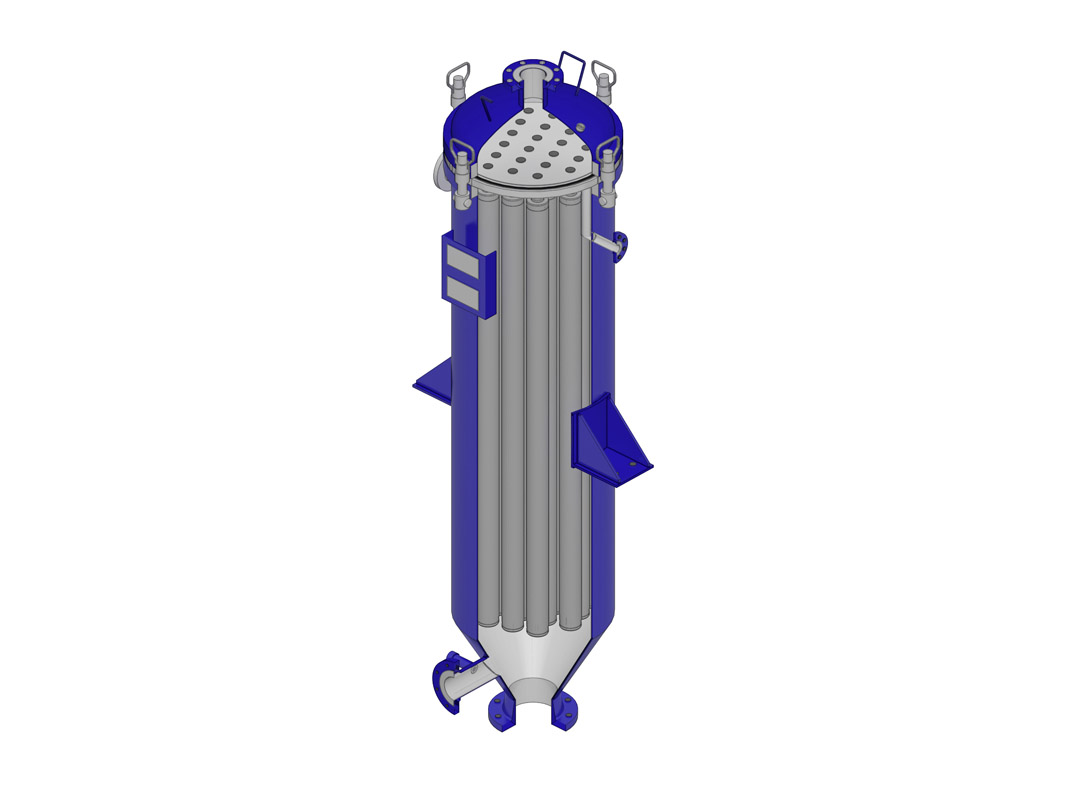

LEEM Model TB (Tube Filter)

We have all of the capabilities to help with your pressure leaf filtration needs and problems. We can provide new filters or rebuild or repair your old filters, filter leaves and spare parts. We will help you engineer and design (or redesign) your pressure leaf filtration system. We can help you solve problems of clarity, bleed through, recycle time, plugged cloth and other difficulties. LEEM offers you the widest choice of pressure leaf filter configurations with leaf areas ranging from 30 to 2,000 square feet.

To receive cad drawings, quotes or additional product information please contact us.

Details

  • MODEL NO. FILTER AREA (ft2) NO. OF TUBES
    20 / 50 / 14 50 14
    20 / 65 / 18 65 18
    20 / 80 / 22 80 22



    NOZZLE   SERVICE
    N1   Inlet/Drain
    N2
      Outlet/Recirculation
    N3   Cake Outlet
    N4   Vent
    N5
      Pressure Gauge Connection
    N6
      Instrument Connection
    N7
      Instrument Connection



    DIM SIZE (INCHES)
    A 20
    B 80 1/2
    C 39 3/8
    D 35 1/2
    E 31 3/4
    F 67

    Industries Served

    • Beverage
    • Biofuels
    • Cement
    • Chemical
    • Corn milling
    • Fluid treatment
    • Food processing
    • Mineral processing
    • Oil Feed
    • Petrochemical
    • Petroleum
    • Pharmaceuticals
    • Pulp and paper
    • Sugar
    • Waste water treatment
    • Water Treatment
    • Well water and irrigation
  • ImageTitleFile TypeFile SizeDownloadDateCategories1234_hfilter

    LEEM Model TBPDF351Kb

    Download

    12/12/18data-sheet

    LEEM Model TB DrawingPDF19 KB

    Download

    12/12/18drawings

    TB and HDL Series DrawingsPDF2.3 MB

    Download

    12/12/18drawings
